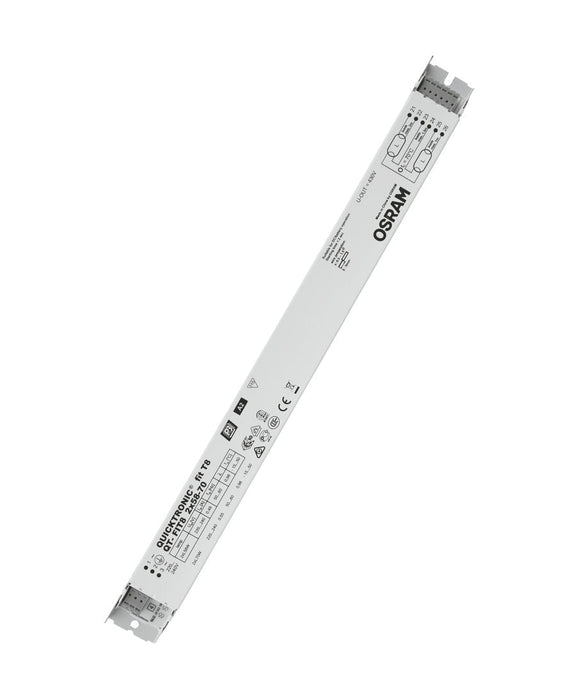

Osram QT-FIT8 2X58…70 - DISCONTINUED

Order Code: QTFIT825870-OS
Original price €20,95 - Original price €20,95
Original price
€20,95
€20,95 - €20,95
Current price €20,95
Buying in bulk? Request a quote

Got a question about this product? Get in Touch

Product family benefits
  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors
  • VDE/VDE EMC certified system
  • Very high energy efficiency due to cut-off technology
Areas of application
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Strip lighting
  • Suitable for emergency lighting (DC operation)
  • Suitable for luminaires of protection class I
  • Technical Data

    Electrical data

    Input voltage AC

    198…264 V

    Nominal voltage

    220…240 V

    Mains frequency

    50…60 Hz

    Input voltage DC

    185…264 V


    Maximum output power

    2 x 70 W

    Efficiency in full-load

    91 %


    Operating frequency

    40…50 kHz

    Max. ECG no. on circuit breaker 10 A (B)

    8


    Max. ECG no. on circuit breaker 16 A (B)

    13


    Inrush current

    15 A

    Light technical data

    Starting time

    2.0 s

    Dimensions & weight

    Length

    360.0 mm

    Width

    30.0 mm

    Height

    28.0 mm

    Mounting hole spacing, length

    350.0 mm

    Product weight

    264.00 g

    Cable cross-section, output side

    0.5…1.5 mm²


    Cable cross-section, input side

    0.5…1.5 mm²


    Temperatures & operating conditions

    Ambient temperature range

    -15…+50 °C

    Permitted rel. humidity during operation

    5…85 %


    Lifespan

    ECG lifetime

    50000 h


    Additional product data

    Suitable for lamp power (2 lamps)

    58…70 W

    Capabilities

    End of lamp life safety shutdown

    EOL T.2

    Suitable for fixtures with prot. class

    I

    Max. cable length to lamp/LED module

    2.0 m / 1.0 m

    Intended for no-load operation

    No

    Dimmable

    No

    Certificates & standards

    Approval marks – approval

    VDE / VDE-EMC / ENEC 10 / CE

    EEI – Energy Label

    A2

    Standards

    Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547

    Type of protection

    IP20

    Protection class

    I

    Logistical data

    Commodity code

    850410809000

    Environmental information


    Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

    Date of Declaration

    13-02-2022

    Primary Article Identifier

    4052899151932

    Candidate List Substance 1

    Lead

    CAS No. of substance 1

    7439-92-1

    Safe Use Instruction

    The identification of the Candidate List substance is sufficient to allow safe use of the article.

    Declaration No. in SCIP database

    59247456-2dea-40a9-b909-81746510b756

    Packaging information

    EAN

    Unit

    Piece

    Dimension l x w x h

    Weight

    Volume

    4052899151932 UNV

    1 360mm x 30mm x 28mm 264.00g 0.30dm³
    4052899151949 VS

    20 383mm x 159mm x 132mm 5442.00g 8.04dm³
